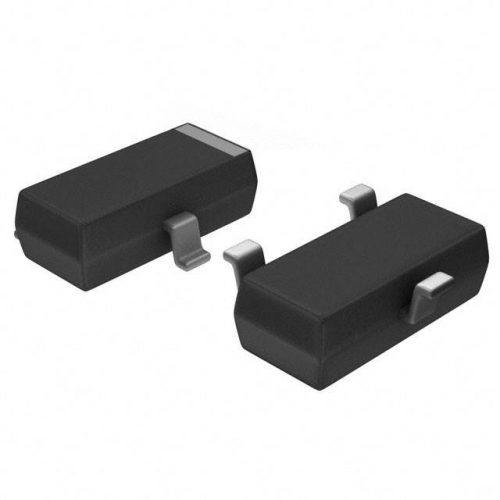

FDV301N Images are for reference only, See Product Specifications
FDV301N
Part Number
FDV301N
Manufacturer
ON Semiconductor
Description
BRIDGE RECT 1A 800V 4SDIP
Category
Discrete Semiconductor Products
Family
Transistors - FETs, MOSFETs - Single
Series
-
Request a Quote
Description
Specifications
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25V |
| Current - Continuous Drain (Id) @ 25°C | 220mA (Ta) |
| Drive Voltage (Max Rds On,Min Rds On) | 2.7V, 4.5V |
| Vgs(th) (Max) @ Id | 1.06V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.7nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds Status | 9.5pF @ 10V |
| Vgs (Max) | ±8V |
| FET Feature | - |
| Power Dissipation (Max) | 350mW (Ta) |
| Rds On (Max) @ Id, Vgs | 4 Ohm @ 400mA, 4.5V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Factory Pack Quantity | 3000 |
| Condition | New & Original |
| RFQ Email | janicelau@megafounderltd.com or Inquires online |
