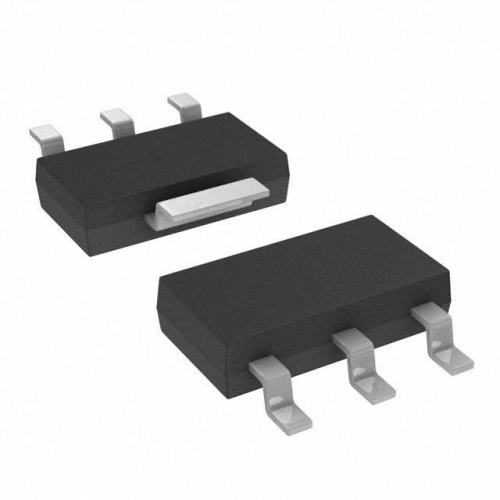

STN3NF06L Images are for reference only, See Product Specifications
STN3NF06L
Part Number
STN3NF06L
Manufacturer
ST
Description
MOSFET N-CH 60V 4A SOT223
Category
Discrete Semiconductor Products
Family
Transistors - FETs, MOSFETs - Single
Series
STripFET™ II
Request a Quote
Description
Specifications
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Tc) |
| Drive Voltage (Max Rds On,Min Rds On) | 5V, 10V |
| Vgs(th) (Max) @ Id | 2.8V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 9nC @ 5V |
| Input Capacitance (Ciss) (Max) @ Vds Status | 340pF @ 25V |
| Vgs (Max) | ±16V |
| FET Feature | - |
| Power Dissipation (Max) | 3.3W (Tc) |
| Rds On (Max) @ Id, Vgs | 100 Ohm @ 1.5A, 10V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-223 |
| Package / Case | TO-261-4,TO-261AA |
| Factory Pack Quantity | 4000 |
| Condtion | New original factory. |
